CPU
- Processor
- Intel Raptor Lake i5-13500H
- Frequency
- Up to 4.7 GHz
- Cores / threads
- 12 cores, 16 threads
- Power
- Default power consumption 35W
+ Xyrra Machine

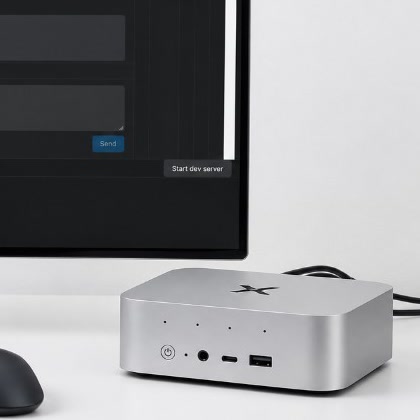

Xyrra Core System 32GB
The entry point for local AI — fast, efficient, and built for everyday models on your desk.
From
Price $1,299.00
- Intel i5-13500H Up to 4.7 GHz · 12 cores, 16 threads
- Intel Iris Xe Eligible up to 1.45 GHz
- 32GB LPDDR4 2× 3200 MHz memory
- 290g metal chassis 115 × 106 × 37 mm
+ Technical specifications
Inside the Core System
Full hardware, I/O, and environment details for the 32GB configuration.
GPU
- Graphics
- Intel® Iris® Xe Graphics eligible
- Frequency
- Up to 1.45 GHz
Memory + SSD
- Memory
- 2× LPDDR4 3200 MHz. Supports 8GB / 16GB / 32GB custom capacity.
- PCIe slot
- 1× PCIe 4.0 x4 2280. The M.2 slot isn’t compatible with SATA3.
- SATA 2280
- 1× SATA3 2280. The M.2 slot isn’t compatible with PCIe.
- SATA 2242
- 1× SATA3 2242. The M.2 slot isn’t compatible with PCIe.
Specific memory and hard drive capacity configurations are subject to change based on the actual product shipped.
Network
- Ethernet
- 1× RTL8125 2.5G RJ45 wired network port
- Wireless
- Wi-Fi 6 wireless card with Bluetooth 5.2
USB ports
- USB-C
- 1× USB 3.2 Gen2 Type-C. Supports DP 1.4 video output (4K 60Hz).
- USB-A
- 4× USB 3.2 Gen2 Type-A ports
Video output
- HDMI
- 2× HDMI 2.0 ports. Supports up to 4K 60Hz video output.
Audio
- Jack
- 1× 3.5mm audio jack — headphone and microphone two-in-one interface
Power & controls
- Power port
- 1× DC-in power adapter port (DC 5.5×2.5mm)
- Button
- 1× Power button
- Adapter
- Input 100–240V AC, 50/60Hz. Output 19V 3.42A.
Case & OS
- Material / color
- Metal (Silver)
- Operating system
- Pre-installed Windows 11. Supports other operating systems such as Linux.
Work environment
- Temperature
- −10°C to 45°C
- Humidity
- 30% to 90%
Storage environment
- Temperature
- −20°C to 60°C
- Humidity
- 10% to 90%
In the box
- 1× Mini PC
- 1× HDMI cable
- 1× Power adapter (19V 3.42A)
- 1× VESA bracket
- 1× User manual
Weight and size
- Net weight
- 290g
- Product size
- 115 × 106 × 37 mm
- Gross weight
- 590g
- Packing size
- 154 × 152 × 98.5 mm
Hand measurements, data for reference only.
